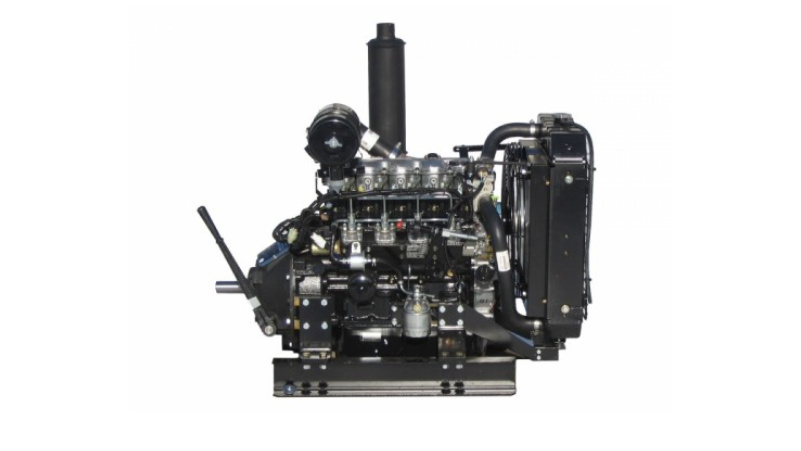

B-Series 4&6 Cyls
| Engine Model | 4BG1T | 6BG1T | 6BG1TC |
|---|---|---|---|
| Emission Regulation | Tier2/Stagell | ||
| Engine Characteristics | 4Cycle, Water Cooled, Vertical In-Line | ||
| Valvetrain Configuration | Over Head Valve | ||
| Type of Aspiration | Turbocharged | Turbocharged | Turbocharged and Charge Air Cooled |
| Type of Injection | Direct | ||
| No. of cylinders | 4 | 6 | 6 |
| Bore x Stroke(mm) | 105 x 125 | 105 x 125 | 105 x 125 |
| Displacement(Lit) | 4.329 | 6.494 | 6.494 |
| Firing Order | 1-3-4-2 | 1-5-3-6-2-4 | 1-5-3-6-2-4 |
| Overall Dimensions | Length(mm) | Width(mm) | Height(mm) |
| 935 | 666 | 930 | |
| 1201 | 694 | 949 | |
| 1201 | 722 | 971 | |
| Dry Weight(kg) | 360 | 490 | 489 |
| Industrial Power Net Performance | Rated Output (kW/min-1) | Max. Torque (N.m/min-1) | |
| 91.7/2500 | 387/2000 | ||
| 121.6/2200 | 553.6/1800 | ||
| 132.3/2200 | 637/1800 | ||
| Lubrication System | Full forced pressure feed type | ||
| Lub. Oil Capacity (Oil Pan Only) (Lit) | 13.2 | 21.5 | 21.5 |
| Cooling System | Water circulation type by pressurized | ||
| Coolant Capacity (Engine only) (Lit) | 8.5 | 12 | 12 |
| Starter Motor(V-kW) | 12-2.5 | ||
| Alternator(V-A) | 12-60 | ||
