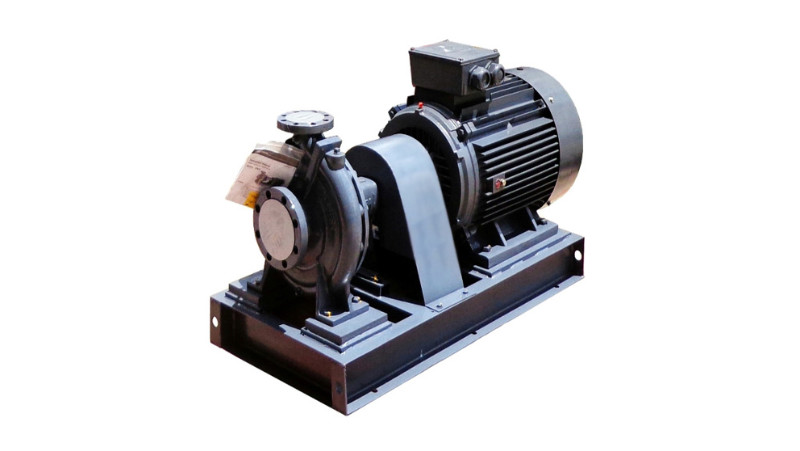

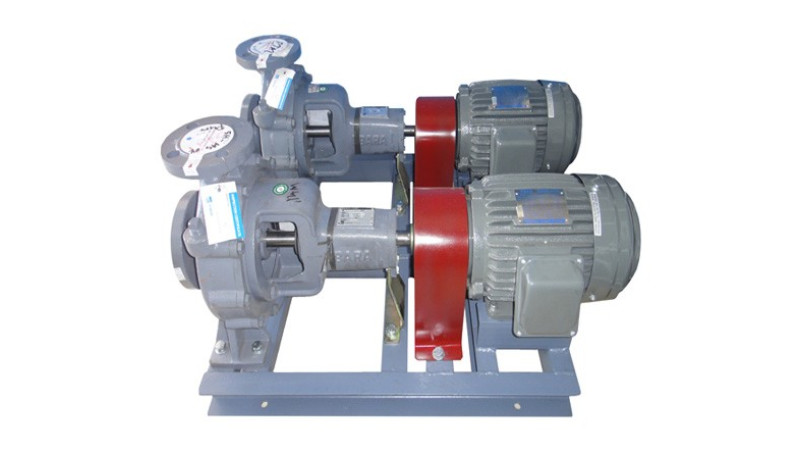

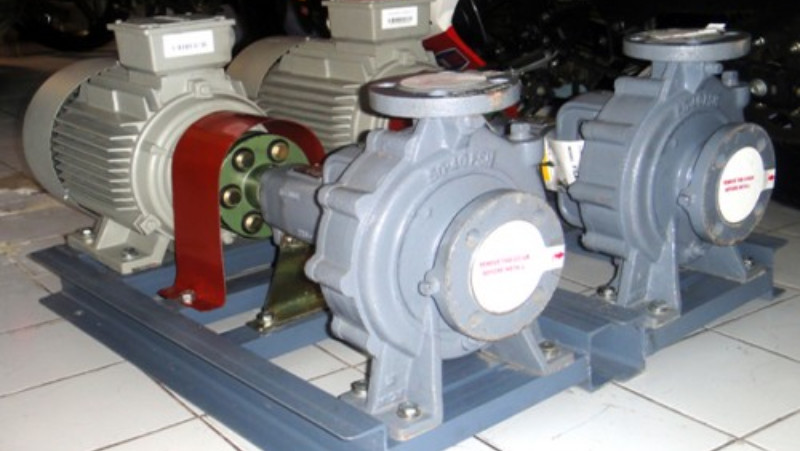

Features Easy maintenance, BPO (Back Pull Out) feature allows all rotating elements to be removed without disconnecting suction and discharge pipework. Top centreline discharge, foot support under casing for maximum resistance to misalignment and distortion from pipe loads. Non overload design to ensure stable performance for all applications. Wide range application with flow capacity up to 22m3/min for 50. Higher working pressure up to 16 Bar. Applications Water supply Hot and cold water circulation Industrial use Sprinkling Air-conditioning For swimming pool
Material Casing Cast Iron, optional Ductile Cast Iron (FCD). Impeller : Bronze casting (CAC406/BC6), optional Cast Iron, Ductile Cast Iron (FCD). Shaft : 403 Stainless Steel, optional 304;316 Stainless steel. Seal : Mechanical seal :ceramic/carbon/NBR, optional Gland Packing : Teflon (PTFE) impregnate; Mechanical seal : SiC/SiC.
