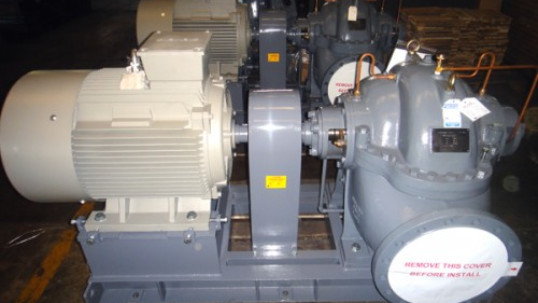

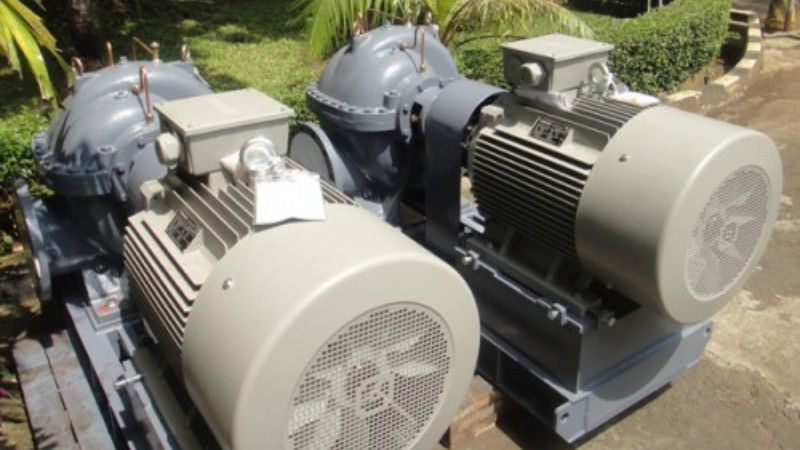

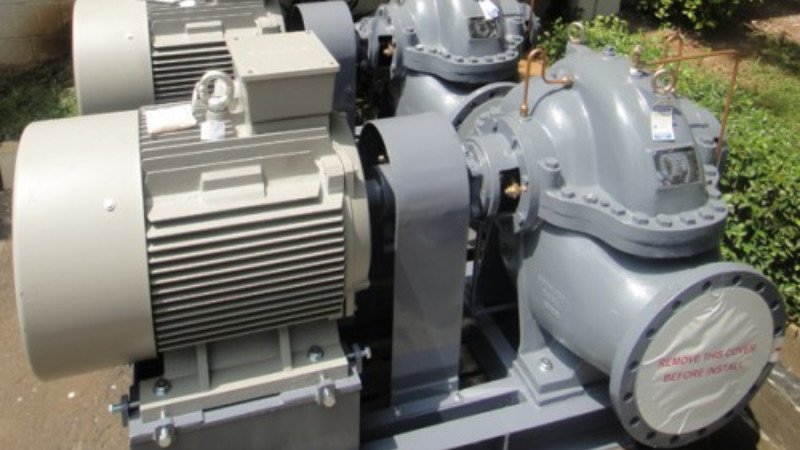

Features Very compact design for ease of installation and permits minimum maintenance. Axially split cassing allows the easy removal of the top cassing for inspection and service. A wide range of performance with head up to 150m. Highspeed drives and vertical mount available. Anti-corrosion materials used on the rotating parts. High quality sealed and cartridge type bearings units provide high durability. High allowable working pressure and ensure stable running. Mechanical seal for easy maintenance.
Applications Water supply Hot and cold water circulation Industrial use Irrigation Drainage Sprinkling Air-conditioning
Material Casing cast iron; optional Ductile cast iron (FCD), Impeller bronze (except 250x150 CNKA and 300x200 CNKA); SCS 13 for 250x150 CNKA; 300x200 CNKA, Shaft SUS 316; SUS 403; optional SUS 304, Shaft sleeve bronze.
